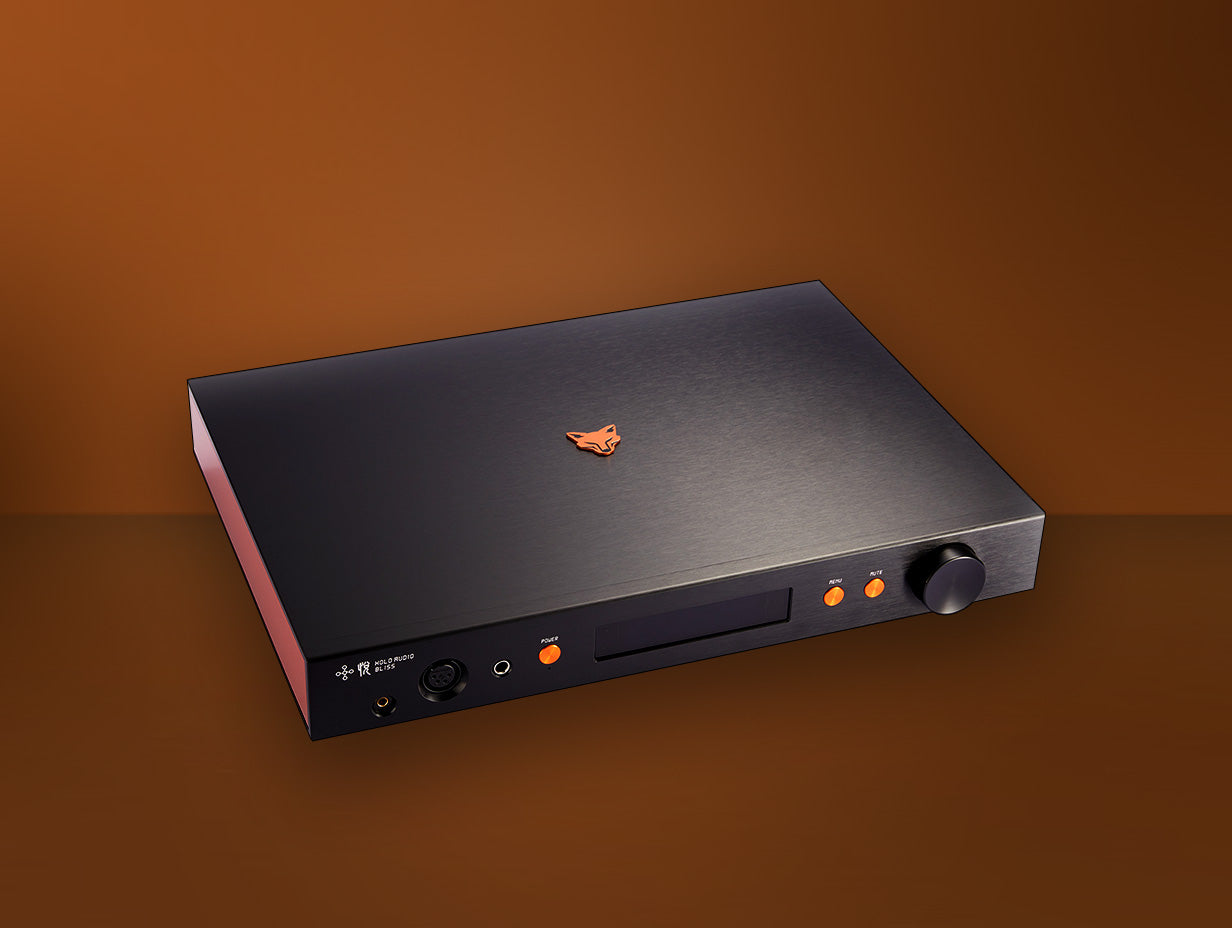

HoloAudio – Bliss Headphone Amplifier

Sale price$4,078.00

The HoloAudio Bliss is here! This has taken a long time and tremendous R&D to deliver a head-amp that does everything well.  Enough power for any headphone!  And delivering our intoxicating sound signature that HoloAudio is known for.

Does not include remote control by (can be special ordered, email us for info)

“NOTE: Be sure to say in notes what volt ac model you need, USA/CAN is 110 volt ac standard etc.  – Also note if you ask for special voltage transformer that it can delay your order up to a week longer.”

Version: KTE Bliss
The following is added to KTE BLISS:

  1. 100VA DUAL O-type(not Toroid) FLATWIRE (NOT roundwire) 6N Copper custom hand made audio transformers. Only KTE Model
  2. All copper wire is replaced with 1.5mm pure occ silver wire. Only KTE model
  3. Replaced IEC inlet connectors with pure silver/rhodium plated faston connectors at the IEC inlet. Only KTE model.
  4. Fuse is upgraded with world class Red Nano fuse with gold/silver and graphene and quartz filtering materials. Only KTE Model
  5. Standard caps are upgraded with Audio Note Kasei capacitors. Only KTE Model
  6. Custom made HoloAudio 1000V 1uF caps / Mundorf evo silver/gold caps (both are standard in all models of bliss)
  7. Special Kitsune Tuned Edition branding inside and out (pure copper Kitsune fox emblem on top panel) + remote control / KitsuneHiFi VIP service, english support and manuals/software
Estimated Time Before Shipping:

Estimate time before shipping: These will ship directly from the US - estimated shipping time is 3-10 days.

Specifications

Line In:

Single-ended RCA input (QTY 3)

Maximum amplitude 8.4Vrms

Input impedance 6.2KΩ

Balanced XLR input (QTY 2)

Maximum amplitude 16.8Vrms

Input impedance 12.4KΩ

Headphone Outputs:

4P XLR Output

Low impedance mode (LO-Z): Output impedance 0Ω, power 12Wrms@32Ω
High impedance mode (HI-Z): output impedance 15Ω, power 2.5Wrms@150Ω

4.4mm Pentaconn Output

Low impedance mode (LO-Z): output impedance 2Ω, power 12Wrms@32Ω
High impedance mode (HI-Z): output impedance 17Ω, power 2.5Wrms@150Ω

6.35mm TRS Output

Low impedance mode (LO-Z): output impedance 1Ω, power 3Wrms@32Ω
High impedance mode (HI-Z): output impedance 8.5Ω, power 0.6Wrms@150Ω

Line Out:

Single-ended RCA Output

Maximum amplitude 10Vrms
Output impedance 20Ω

Balanced XLR Output

Maximum amplitude20Vrms
Output impedance 40Ω

Physical Characteristics:

Size 430x300x55mm / 16.93×11.81×2.17inches (W x L x H, Dimensions do not include protruding parts) additional 12 mm for machined feetWeight 10kg / 22.05lbs

Configuration:

Power Input (configurable, see label on bottom of unit for specified input)

220-230V 50/60Hz – Use Fuse Type 2A SB 5x20mm (when internal switches are set@220v)
110-115V 50/60Hz – Use Fuse Type 4A SB 5x20mm (when internal switches are set@110v)

Power Consumption:

50w

Included Accessories:

AC Power Cable x1 (Applicable to North America only)

*Remote Control x0 (these can be ordered, but neither model comes with remote as they are headphone amps and should be in reach.)

Warranty:

3 years warranty, both parts and labor, cover one way shipping (return shipping once product is confirmed a warranty claim). Be sure to buy directly from HoloAudio or authorized reseller and we recommend to buy from HoloAudioUSA<– this is KitsuneHiFi 😉 – Support is given from the source you choose to purchase from.

We sell HoloAudio Products and offer support to North America and Japan, Other areas you must contact you local dealer.

Additional Info

Single crystal nano fuseSpecification: 5X20mm @2A(220v) or 4A(110v)Withstand voltage: 250V (T) slow speedFeatures: This product has a complicated process, special materials can not be mass produced so this fuse is 100% pure handmade!This fuse cost is high due to the materials and labor. The structure is crimped, the contacts are firm and reliable, plated 24K gold, non-chemical process  gold plating. The fuse is made of imported single crystal silver-copper alloy. After nano-processing, note that the fuse is directional after nano-processing. The inner filling of the quartz sand is filled with nano-graphite, and the graphite has ultra-high conductivity and high anti-interference characteristics. The sound is beautiful, soothing and layering is superb. This is the fuse we use in our flagship products.The fuse is filled with 2 grades of quartz sand for good shock absorption and arc prevention/elimination. In the middle is graphene, which has the advantages of ultra-high conductivity and anti-interference. The fuse is a single crystal silver-copper alloy containing 10% precious metal, treated with nanographene, and stranded with single crystal silver.The fuse cap is stamped from 99.99% 4N copper, one end is plated with 24K gold and one end is plated with sterling silver. Increasing the conductivity and the speed of the power supply make the fuse and the socket highly accessible.The fuse is firmly pressed with two caps made of 4N copper. This process protects the fuse in the middle of the fuse. The fuse and the cap are in good contact with the ceramic tube. This process will reduce the oscillation of current passing.The ceramic tube has anti-resonance and eliminates the effect of the microphone sound.The fuse is made of a single crystal silver-copper alloy, and a very fine single crystal silver wire is wound to correct the sound.Tip: Input in different directions, the tone is different. You can try different directions

Fuse Type for Standard Bliss :

Shurter Gold fuse type

2A SB 5x20mm (220v) and 4A SB 5x20mm (110V)
