HoloAudio – Red – DDC & Network Streamer

HoloAudio – Red – DDC & Network Streamer

Name: HoloAudio – Red – DDC & Network Streamer
Brand: Holo Audio
Price: 948.00 USD
Availability: InStock

$948.00

HoloAudio “RED” is a Network Streamer with I2S HDMI output supporting DSD up to 1024 and it can be used as DDC (USB to I2S or SPDIF converter)

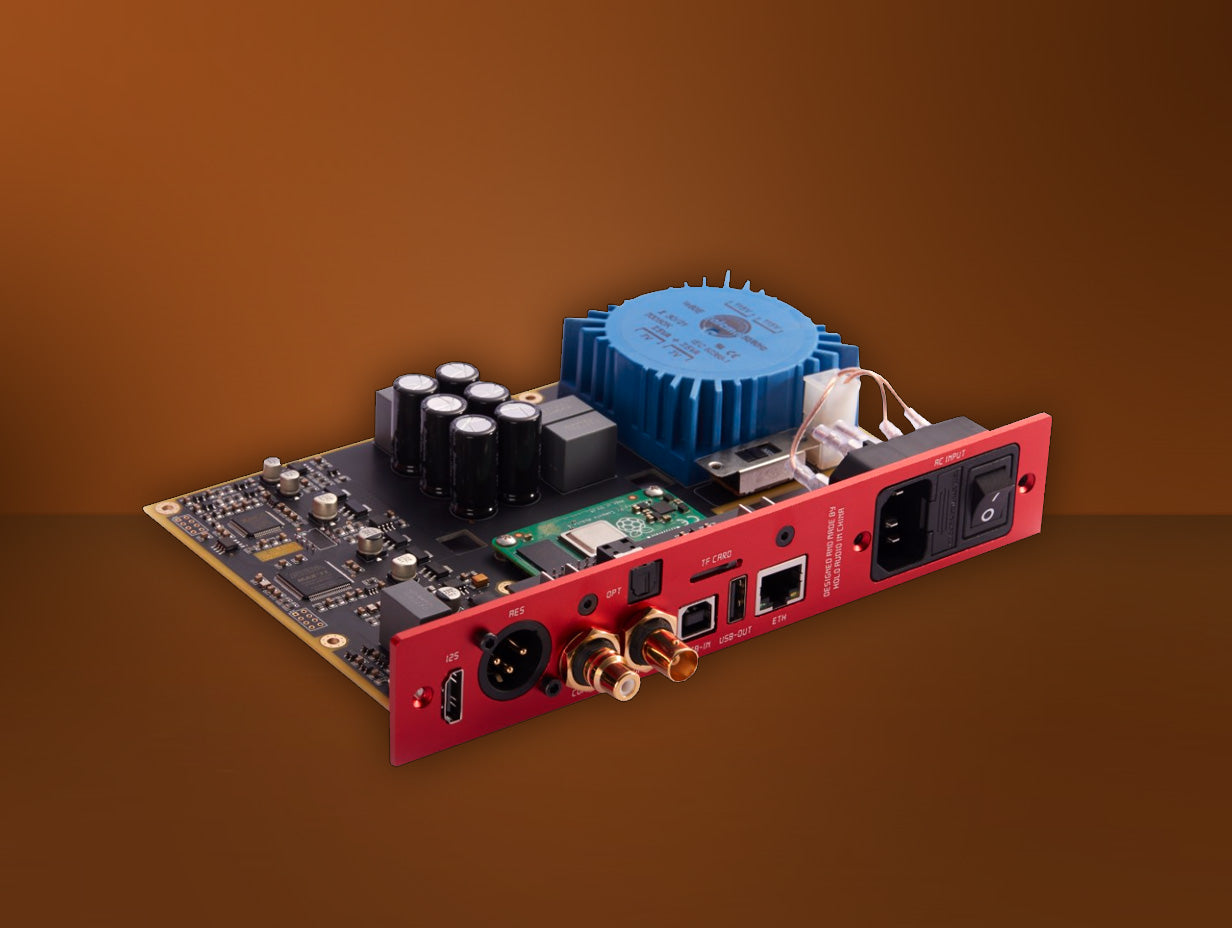

This audio device is using a Pi Compute Module 4 it only uses the Pi4 as core system. It differs from a standard Raspberry Pi because it does not have all peripheral components on board, but has been developed by HoloAudio, of course optimized for Audio. The advantage is that it can be used with a lot of software and is therefore versatile.

Supports Roonbridge Tidal (Connect), Qobuz, Spotify (Connect) and airplay.

Estimated Time Before Shipping:

Estimate time before shipping: These will ship directly from the US - estimated shipping time is 3-10 days.

Quantity:

HoloAudio – Red – DDC & Network Streamer

$948.00

Description

This audio device is using a Pi Compute Module 4 it only uses the Pi4 as core system. It differs from a standard Raspberry Pi because it does not have all peripheral components on board, but has been developed by Holo Audio itself, of course optimized for Audio. The advantage is that it can be used with a lot of software and is therefore versatile.

Featuring digital input and output options
Simple setup user-friendly software setup
Stream Internet radio stations, streaming music services and your own local music library.
Control music wirelessly with a controller app
AirPlay 2 lets you play music from your wireless device
DDC – Digital (USB) to Digital (I2S HDMI, Coax BNC, RCA, Optical, AES/EBU) Converter

Software

Supporting audio services:

NAA HQPlayer
Roon Bridge
UPnP
AirPlay
Squeezelite
Scream*
Spotify
Tidal Connect

- Easy to activate in the main menu.
- All services can be activated simultaneously*
- Output UAC2 Gen2.0 DSD DoP / DSD Native

* Scream (Virtual network sound card for Microsoft Windows) can only be activated in standalone mode

DSD Native Support

notice: Red can support up to DSD512 and PCM768K by I2S. USB is limited by linux kernel and also support DSD512 and PCM768K.

Specifications

Product type

Network Streamer & DDC (Digital to Digital Converter)

Ethernet

Ethernet RJ45, GigE 1000Mbps

Digital inputs

USB 2.0

Digital outputs

1x I2S HDMI (Holo Audio compatible)
1x Coaxial S/PDIF RCA
1x Coaxial S/PDIF BNC
1x AES/EBU XLR
1x Optical Toslink
1x USB-A 2.0 (USB Host)

Supported file formats

MP3, AAC, WMA, WMA-L, OGG, ALAC, FLAC, OPUS, WAV, AIFF

CPU

Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

Native sampling rates

16-24bit 44.1-768kHz – Native DSD64 – 512
Note: Future release will support up to DSD1024 / 1.5Mhz

Compatible OS

iOS
Android
Windows
Mac OS

Streaming services

Deezer, Spotify, Qobuz, Tidal, Web radios

Others services

AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready
HQPlayer NAA
UPNP
Squeezelite
Scream

Power supply

100-240VAC (cable included)

Dimensions

220 x 146 x 46mm

Weight

2 kg

Package

1x HoloAudio Red
1x Power cable
1x MicroSD card (software installed)

Important notes for those who just received their Red:

Note: Red requires a small amount of general computer knowledge to setup and understand your local router and ethernet settings. It’s like most any PI4 streamer and if you have set one of these up before this one will be easy too. There will be limited support for the device only, not your personal computer or networking setup.

Note: RedOS is preloaded on the include TF card included!!! do not lose this! The TF card will have RedOS pre configured and can be updated when connected to Ethernet and updates can be downloaded directly to TF card. DO NOT remove or insert TF card when unit is powered on, damage could occur to the card. Be sure unit is always powered off/unplugged when inserting or ejecting card. We do not ship the Red with the TF card pre installed because they can possibly eject during shipping. The Red manual has instructions on how to create a new TF card incase you damage or lose the one included.
