JCAT NET Card XE EVO

JCAT NET Card XE EVO
Sale price$1,475.98

Description
Specification:
- PCI Express network card for High-End Audio – Optimized for superior audio performance in any PC or mini PC with a PCIe slot
- Enhanced sound quality – Significantly elevates the audio quality of any music server setup
- Superior music streaming and playback – Maximizes quality for streaming services (TIDAL, Qobuz, etc.) and files on local servers
- Ultra-low-noise power regulation – State-of-the-art linear voltage regulators (0.46 µV RMS) eliminate noise interference, setting a new standard for quiet, interference-free playback

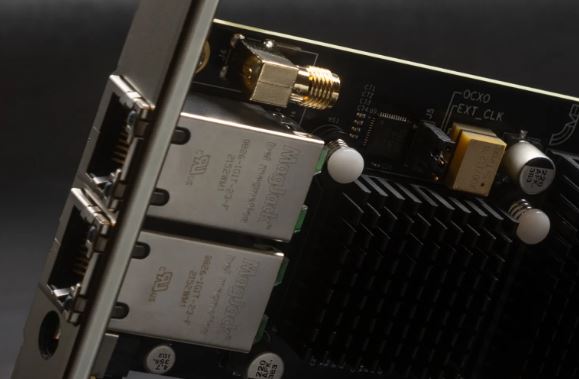

- Integrated and External Clock Precision – Featuring an SMA connector for optional integration with JCAT’s Master OCXO Clock, allowing users to switch between the built-in OCXO and an external clock for ultimate flexibility and performance
- Truly linear design – Free from switching power supplies for a pure signal
- State-of-the-art ±0.005 PPM (±5 PPB – Parts Per Billion) stability Emerald OCXO (oven controlled oscillator) delivers the most stable timing in the presence of environmental stressors such as airflow, temperature perturbation, vibration, shock, and electromagnetic interference (EMI) ensuring flawless audio timing
- Top-quality industrial-grade components – Operating reliably across a temperature range from -40°C to +85°C
- Intel i350 Ethernet controller – Enterprise-level performance for flawless audio data transmission
- Gold-plated EMI-shielded RJ-45 connectors – High-durability connectors with built-in transformers for optimal isolation and sound clarity
- Dual audiophile-grade network adapter ports – Supporting speeds up to 1Gbit for seamless network integration
- Noise-reduction LED-off feature – Minimizes LED noise for an ultra-clean sound path

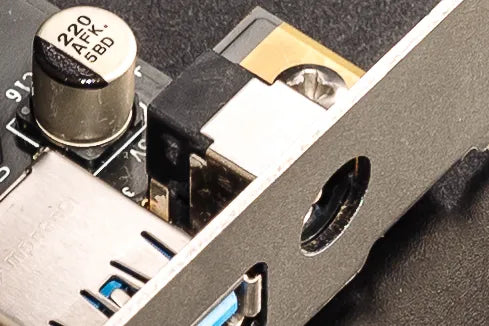

- External PSU option – Power the card separately to avoid drawing from the computer’s power supply. For best results, pair with JCAT power supplies (requirements: 5V/1.5A min)
- Flexible PCIe fit – Low-profile and full-height laser-cut PCIe brackets included for universal installation
- Compatible with all PCI Express 2.0 slots (x1-x16 lanes)
- Supported OS: Windows (all editions) and Linux, plus native compatibility with Roon ROCK
- Trusted by Ultra Hi-End Studios – Used in TRPTK, the acclaimed high-end recording studio
2x Lower Noise for Unmatched Purity
Equipped with the latest State-of-the-Art in linear voltage regulation, the NET XE EVO achieves a remarkable noise level of just 0.46 µV RMS—nearly half the already impressive performance of the LT3045 regulators in the original NET XE card. This ultralow noise floor provides an exceptionally clean power supply, significantly enhancing sound quality by reducing unwanted interference.
Optional Driver Package: https://downloadcenter.intel.com/product/59064/Intel-Ethernet-Server-Adapter-I350-F2
