KTE SU-1 DDR (dual discrete regulators): Kitsune Tuned Edition – 3.2uV/2.0uV output noise, 125db PSRR, USB Digital to Digital Convertor XMOS XU208 CPLD DSD512

Sale price$719.00
Sold out

Singxer KTE SU-1 DDR- KitsuneTuned Edition

Color: Black
Black - 2019+ KTE SU1 DDR - Industrial High Retention USB Connector upgrade - Ultra Low ESR Oscon caps, Vishay Film Caps, MB mods, Dual Discrete Regulators, Dual surface mount 6uV regulators for Crystek clocks, Rhodium silver audio grade fuse, Graphene treated contacts on IEC inlet, connectors, usb connector, SPC solid core air dielectric hookup wiring, improved 4way i2s circuit and gold plated HDMi connector.

Description

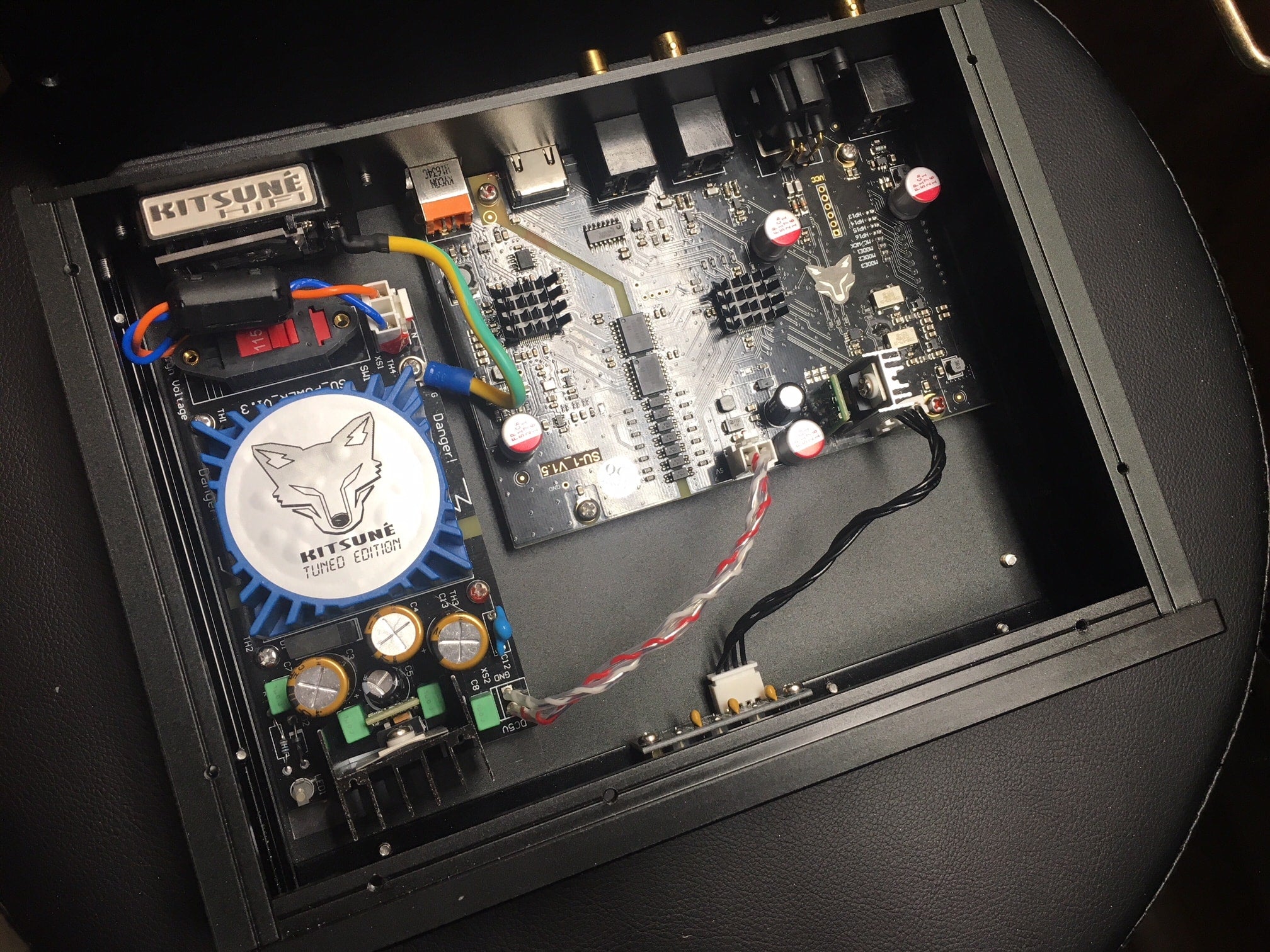

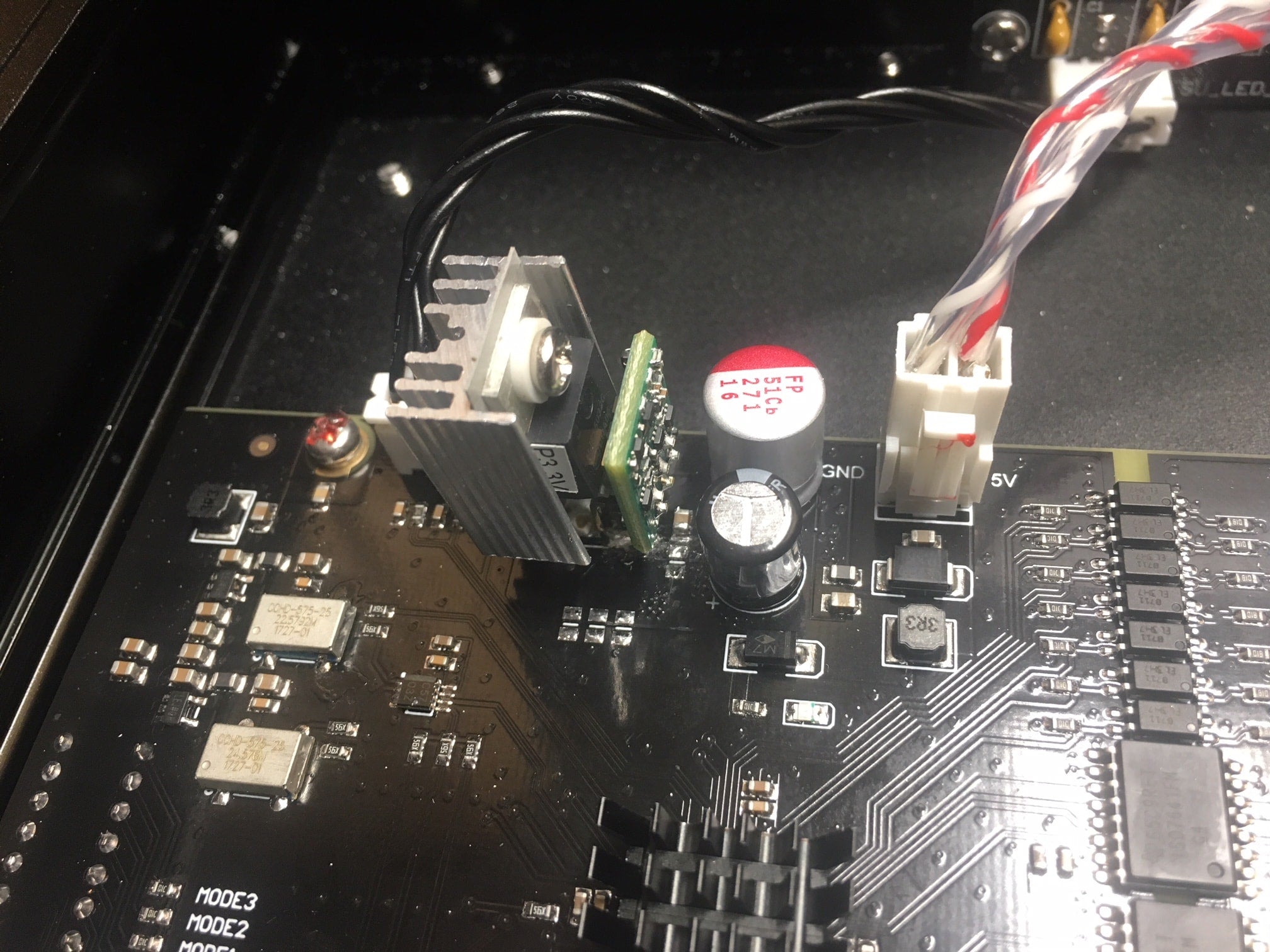

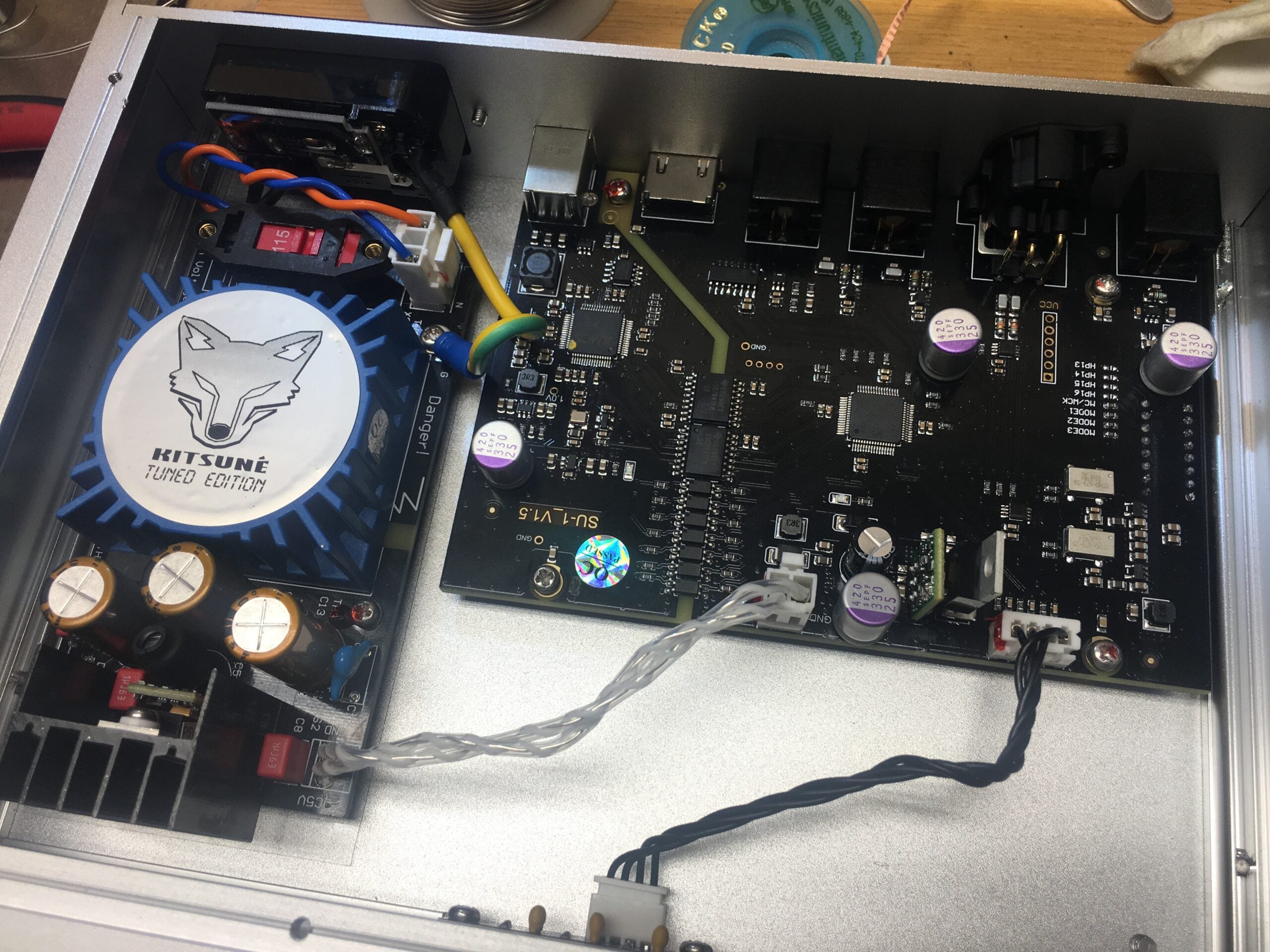

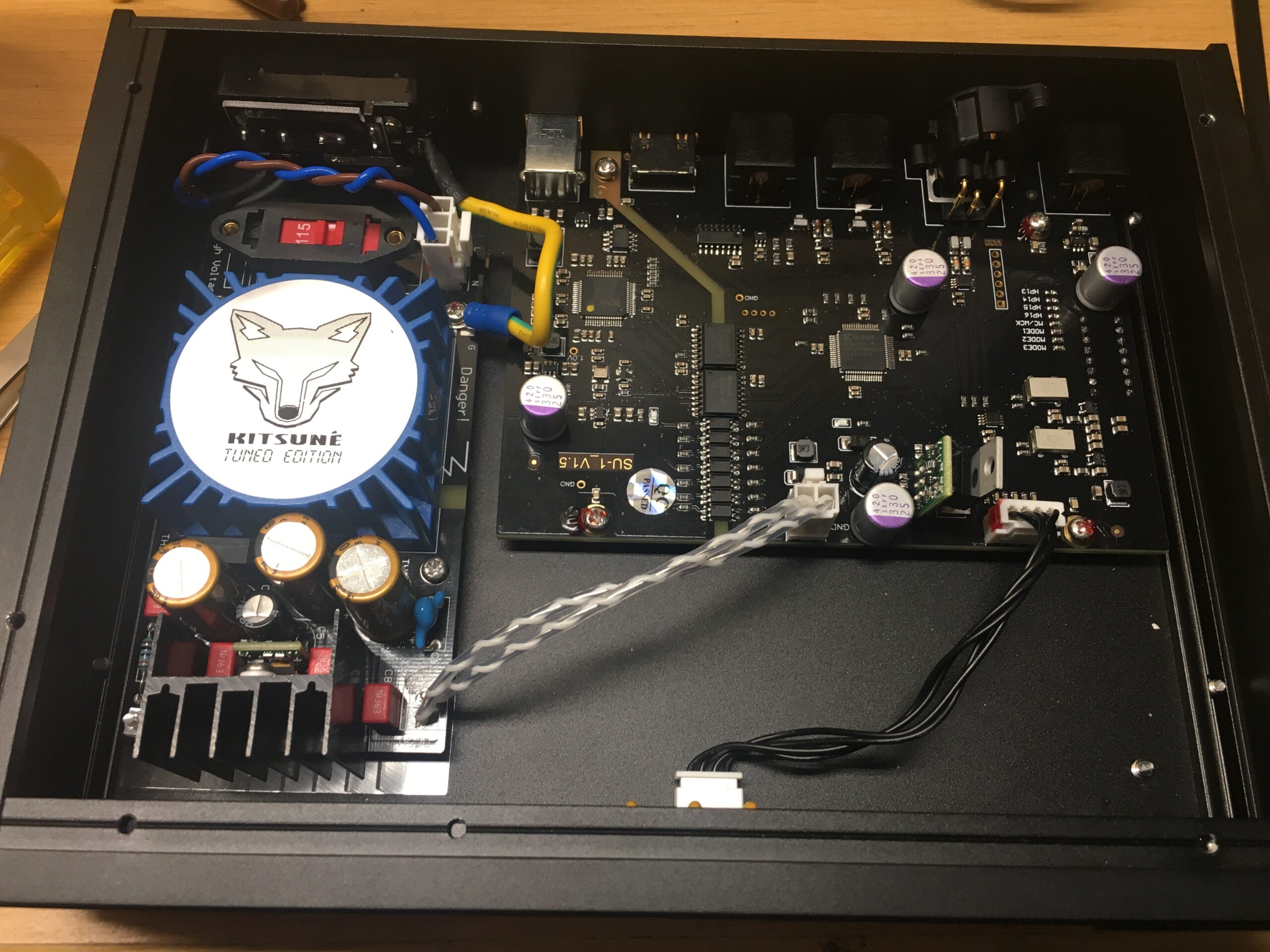

Singxer KTE SU-1 DDR- KitsuneTuned Edition w/ upgraded Low ESR OSCON caps, USB Connector upgraded to Industrial High retention for improved impedance. Graphene contact treatment of USB connector, IEC power inlet, internal connectors. SPC solid core air dielectric sleeved hookup wiring, Mundorf Supreme 9.5% silver solder used for all components upgrades. Surface mount regulators are upgraded for the two Femto Crystek clocks with better 6uV output noise. Vishay Film caps used in PSU and ultra high performance discrete regulators for both 5V(PSU) and 3.3V(digital outputs) – 3.2uV output noise or less (lower voltage is less noise… 3.3v is approx. 2uV output noise), -125db PSRR (power supply rejection ratio) compared to the stock regulator @ 150uV output noise and -70db PSRR approx.

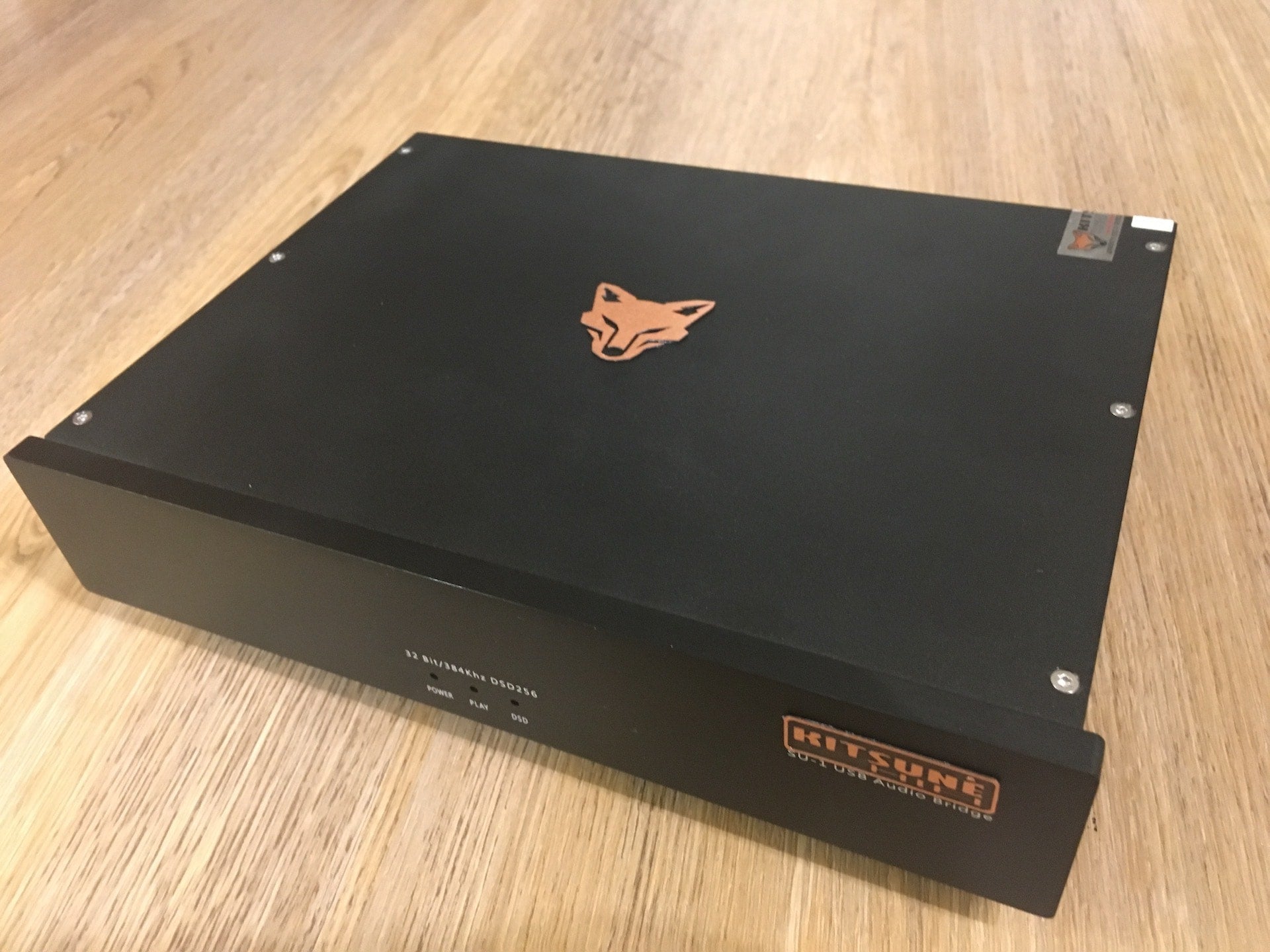

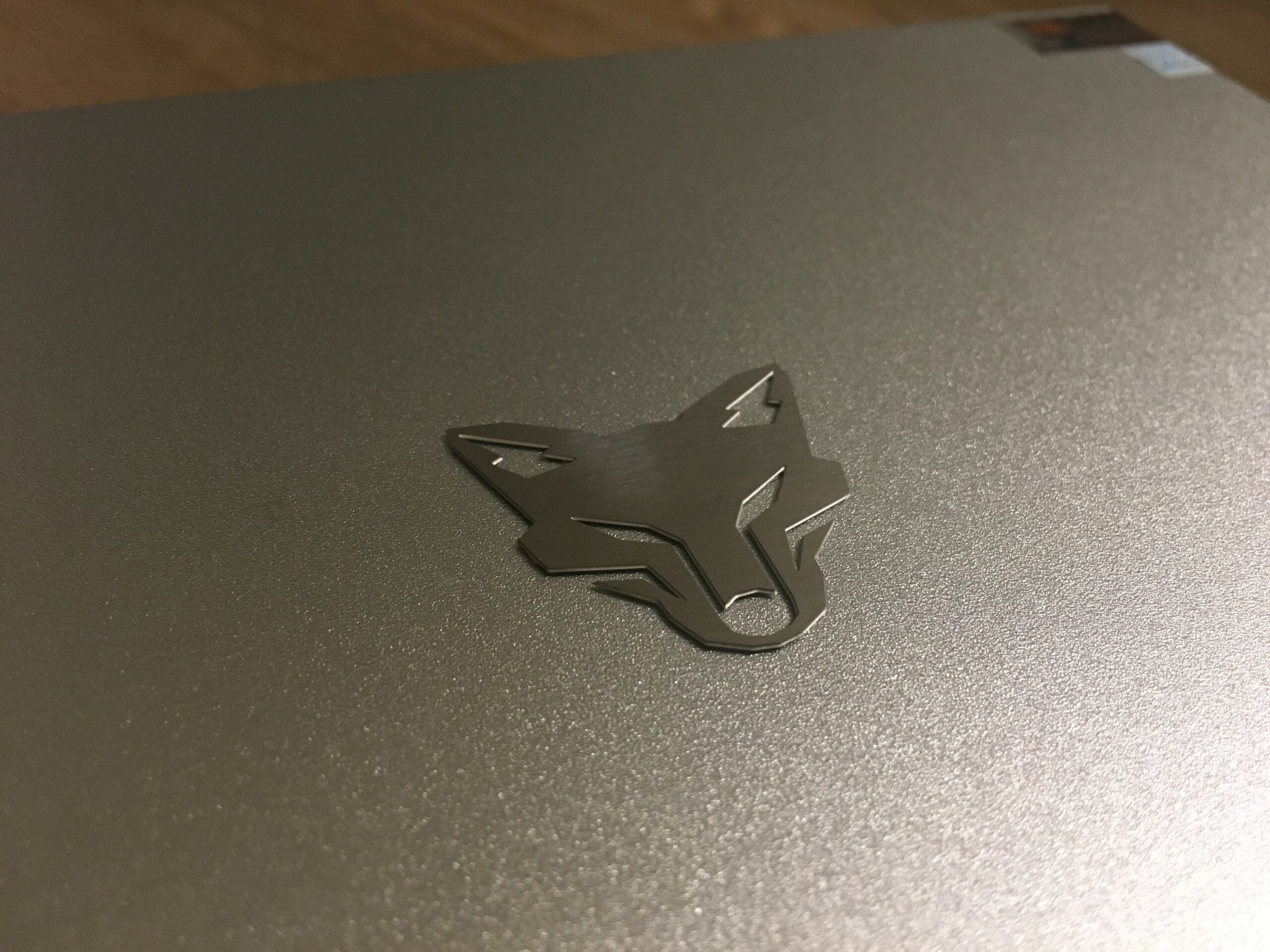

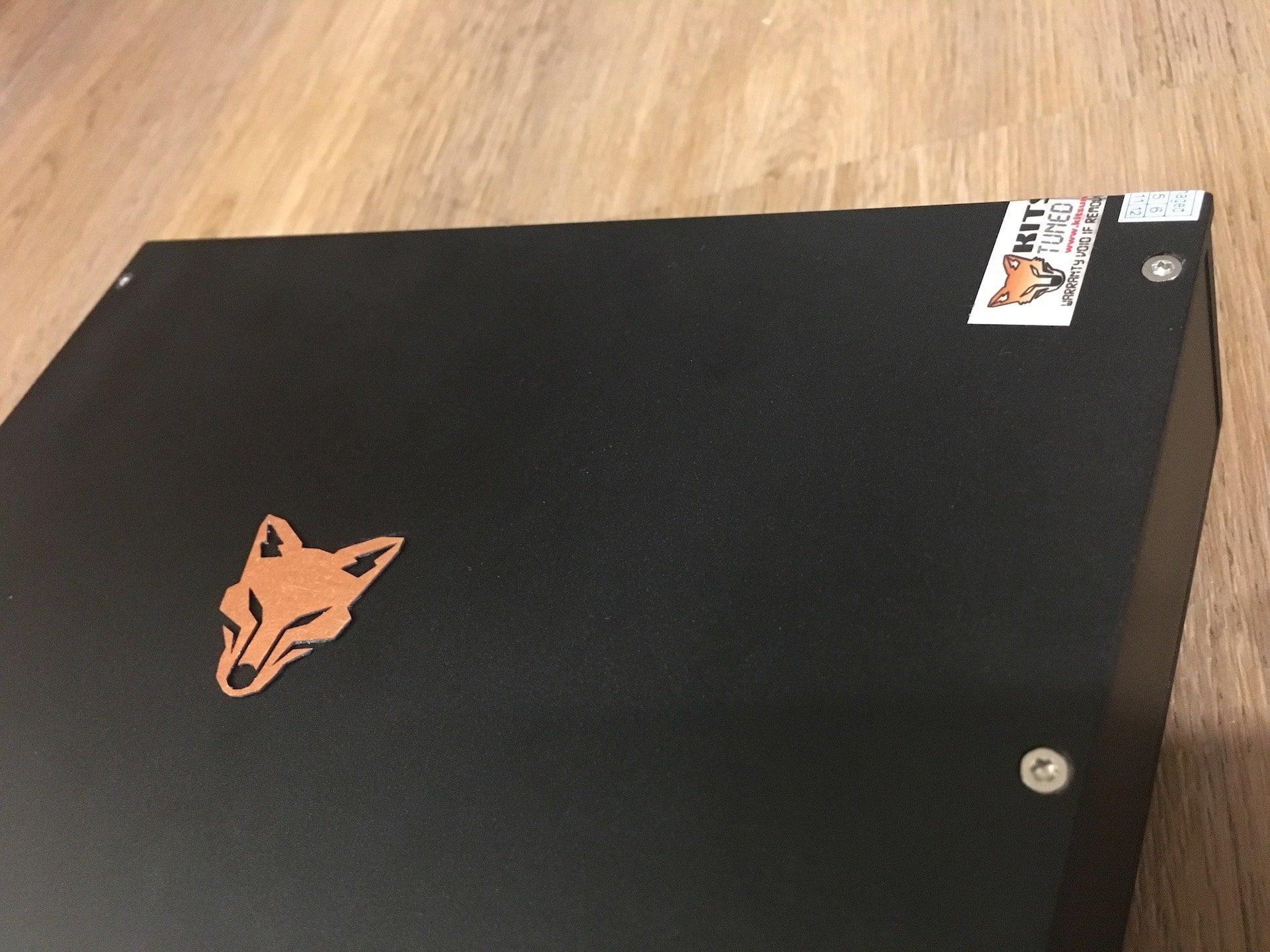

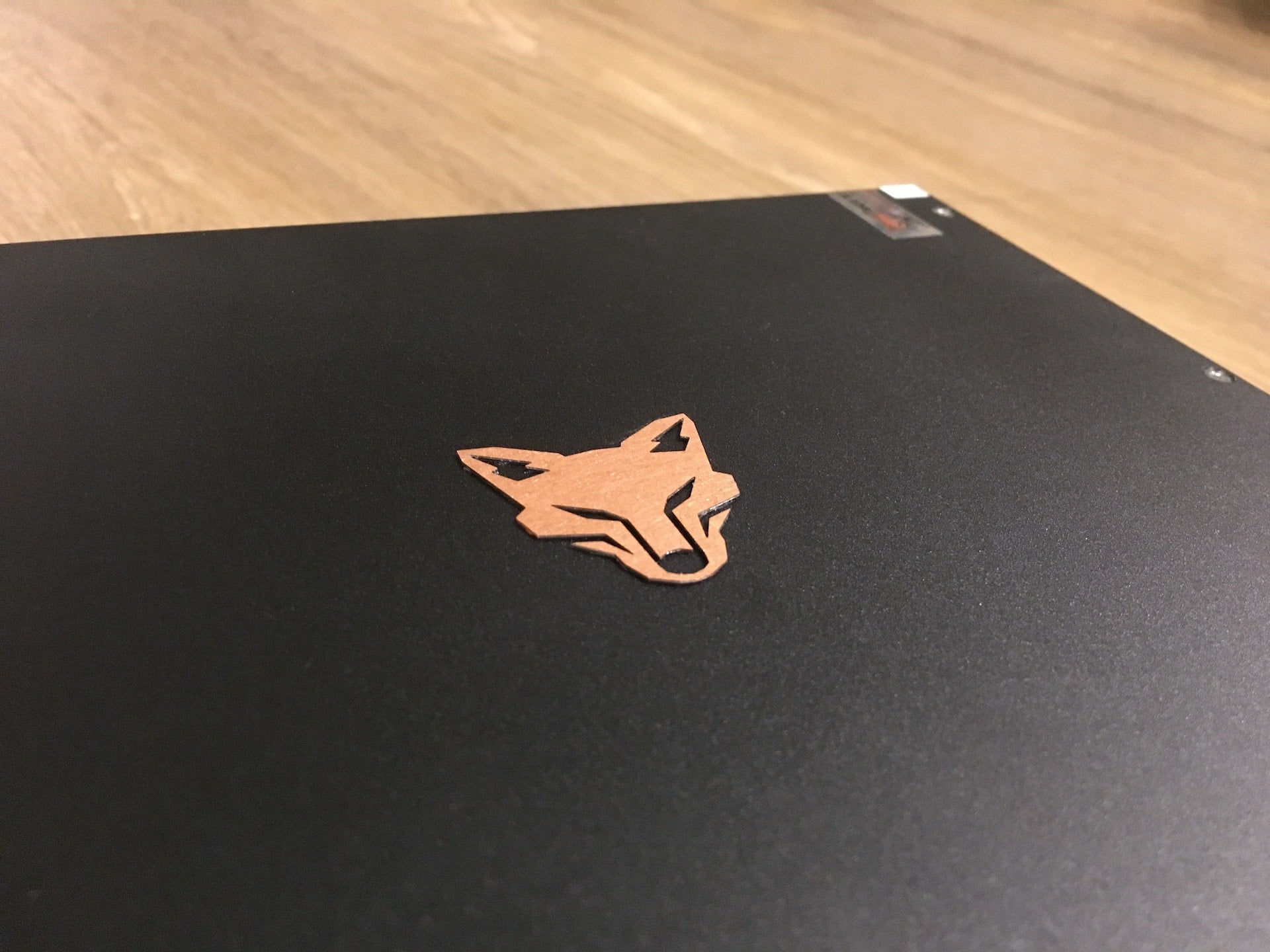

KTE SU1 DDR has custom Solid copper badging (or stainless steel KTE badging for the Silver SU1). Each unit is individually serialized. Each unit is modded by hand and burned in for 72 hours before returning to the customer.

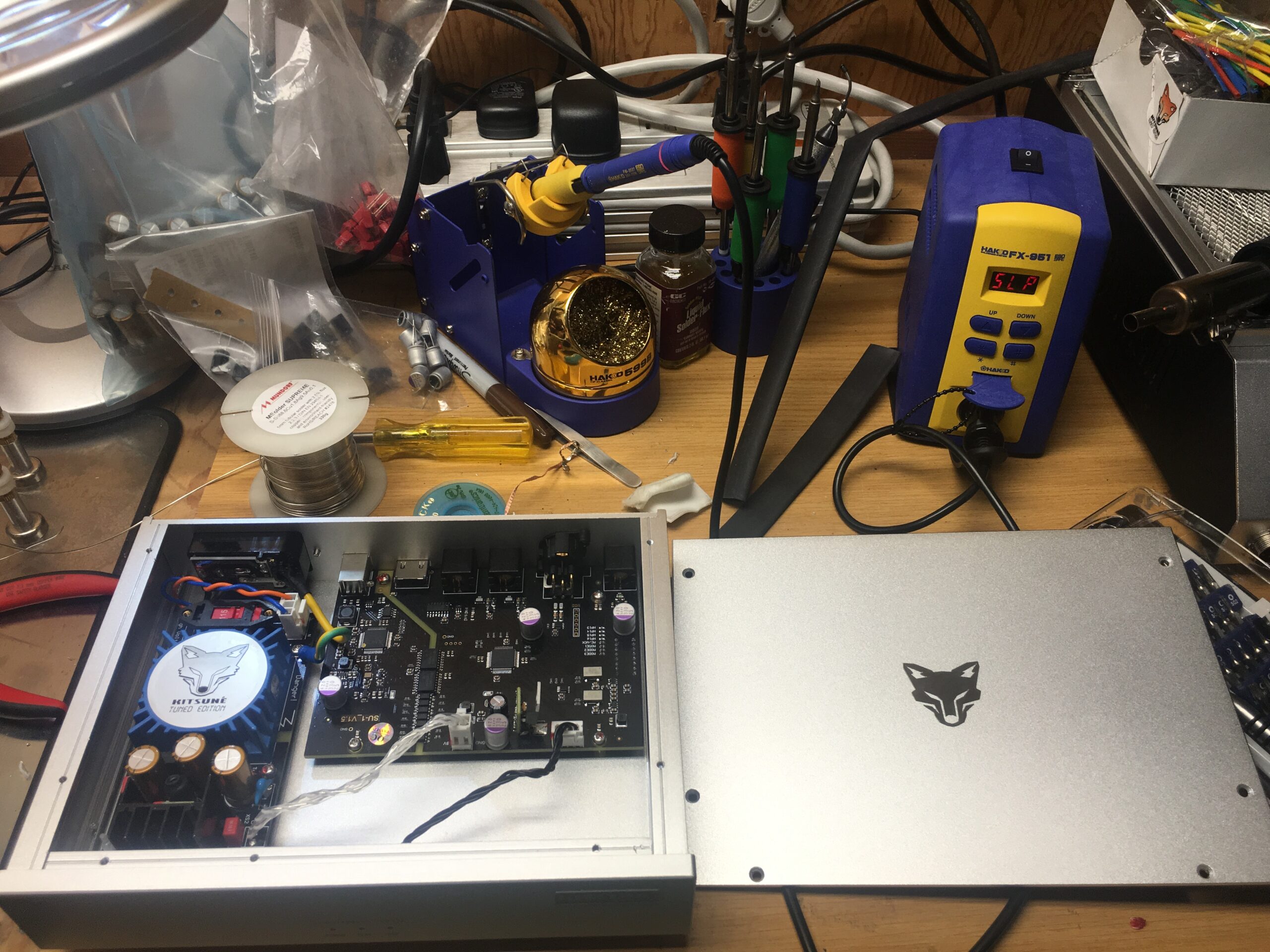

SHIPS FROM USA! Tim Connor does the mods on these KTE editions and they have about a 10 business day build time. They can be special ordered and just expect about 10days from date of purchase it will ship out, however if any reason I’m backed up, i’ll email you right away to let you know status.

These are limited run and scheduled for builds. I have only so much time and must control the sales of these items. Thank you for your patience and understanding. These are simply a labor of love!

My passion for audio and several customer’s requests have allowed this product to be possible. This actually is one of our best selling products on the website and due to extremely high demand i’ve worked hard to deliver these. I believe you’ll be quite thrilled with the sonic improvements this will bring to your system!

KTE-SU1 DDR comes pre-loaded with firmware v2.20 for the HoloAudio KTE Spring dac and enables DSD512 native via windows and some versions of linux (newest Sonore uRendu works flawlessly with dsd512 native). The DDR model is new as of October 2017, it includes dual discrete regulators, one for 5v PSU, and the other for the 3.3v for digital outputs. (USB High Retention connector modification upgrade version is 819USD msrp w/free shipping to USA) OSCON Ultra low ESR caps, MB mods, upgraded regulators for crystek clocks (total of 4 regulator upgrades) air dialectric SPC solid core hookup wire, silver rhodium fuse,  Vishay film caps, Kycon High Retention USB connector to improve connection quality/impedance.

Newer 2018 models are slight different and have more support for more dacs…here is info for serial SU001350 and above… some minor improvements have been made to the 2018 models of SU1 – please ask me any questions you have.  upgraded i2s circuit with improve 4way circuit instead of LVDS. gold plated HDMi connector, improved noise shaping for spdif, improved firmware, improved isolation circuit, improved crystek clock and better support for different clock output freq. More support for other dacs, including the W4S.

Specifications

About the SU-1

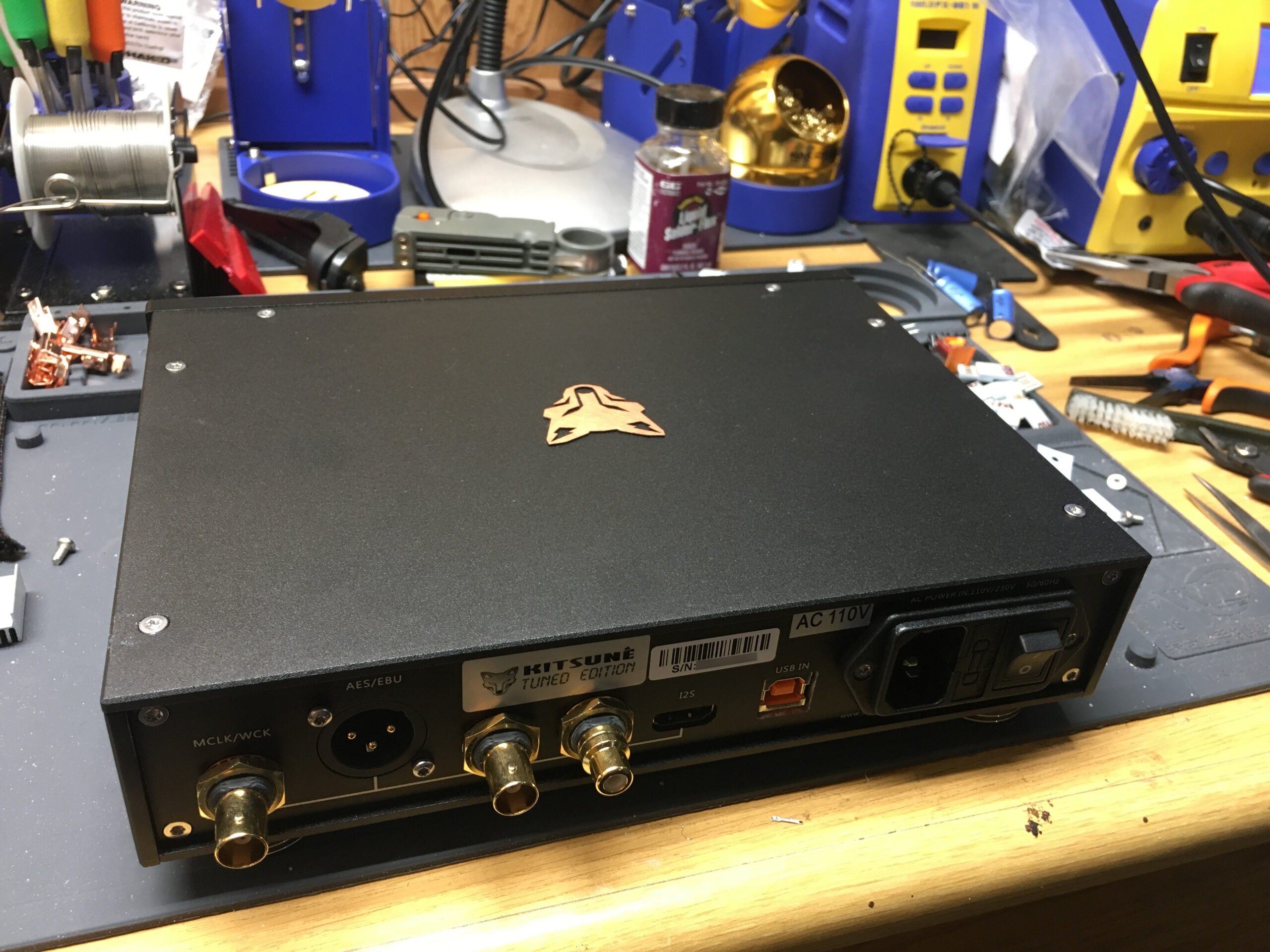

SU-1 digital interface: Singxer team developed a high-performance USB digital audio interface, using the latest XMOS family and Xilinx high-performance CPLD / FPGA chip. SU-1 is the rare use femtosecond system clock digital interface, Crystek of two CCHD-575 SU-1 crystal is the ultimate output audio signal quality has laid a solid foundation. SU-1 digital input interface using a standard USB2.0 interface. SU-1 has a wealth of output interfaces, including coaxial RCA and BNC output SPDIF, XLR balanced outputs AES / EBU, HDMI output IIS (including DSD ON and MUTE signals) and BNC WCLK word clock output.

Technologies

1, full isolation technology (ground isolation), the use of 150Mbps full-chip isolation, interference can be completely isolated from the PC

2, source synchronous shaping technology and CPLD technology, I2S signal isolation after the re-shaping; thus eliminating the isolation chip to bring added jitter

3, the independent development of the system clock, using CRYSTEK high-performance oscillator, low phase noise and low jitter.

Features

SU-1 is the first using the XMOS latest xCORE-200 series of high-end USB digital interface products. New generation XMOS chip, using more advanced process technology, performance than the older U8 chip doubled, reaching 1000MIPS processing capabilities.

The weight of the core is digital audio algorithms. Our team in the field of digital audio work for many years, at the same time get XMOS FAE support team, we conducted a number of technical improvements and optimization algorithms on the basis of the original firmware.

Each output interface supports sample rates:

PCM: 44.1KHz,48KHz,88.2KHz,96KHz, 176.4kHz, 192KHz, 352.8KHz, 384kHz(Wherein I2S out support full sample rate , S / PDIF supports up to 192KHz)

DSD: 2.8 MHz (DSD64) DoP,native

5.6 MHz (DSD128) - DoP,native

11.2 MHz (DSD256) – DoP,native (Wherein I2S out support all DSD format , S / PDIF and AES / EBU support DSD64 DOP mode)

32 bit over I2S output

24 bit over S/PDIF

Each Interface Electrical Standards

1, the USB input socket is a standard USB-B type female, the USB power supply range 4.5V-5.1V

2, the RCA connector outputs standard S / PDIF signal level is 550mV ( access standard load ), the output impedance of 75 ohms

3, the power input is 110/220V AC, internal use RS importing adapter for power.

Design Details

Carry out electricity as the mother of the acoustic design concept, pay attention to the power supply circuit design, high-performance, low noise and fast response of the LDO as the main power source. The entire board using multiple independent path LDO power supply, wherein the clock even partially adopted ADI ‘s ultra low noise LDO , in order to ensure the ultimate output performance laid a solid foundation.

The PCB motherboard with 4 -layer circuit board design, ensure that you have full power and ground plane layer, using the method of high-speed digital design, signal integrity and power integrity of the entire board. The clock signal for special treatment, using package design and precise impedance control, thereby ensuring the signal quality and increase the clock anti-jamming capability. Input and output signals follow a standard design, especially USB high speed signals using a 90 ohm differential impedance control.

System Compatibility

Windows XP, Windows 7, Windows 8; 32/64 bit, you need to install special drivers

Native MacOS 10.6 and later, using the system comes with drivers

Native Linux with UAC2 compliant kernel, using the system comes with drivers

Android OS 4.2 and above, the need to support OTG function.

I2S interface with HDMI output socket

The level of 3.3V for the LVDS differential signals

The output signal is muted, DSD ON signal, 5V power supply (low current)

The output signal mute, DSD ON signal can be modified according to customer needs, internal CPLD can define different output pins; the two signals can be output to any socket PIN13,14,15,16 pins.
