Singxer SA-90 Class AB Mono Power Amplifiers (pair)

Sale price$1,398.00

Singxer introduces Power Amplifiers, the SA-90 Mono Power Amplifier.
This product consist of 2 Mono Amplifiers, a complete Stereo Amplifier Set.

Class AB Mono Design with ultra-low distortion due to it’s improved Class AB design.

This high-performance mono modular Hi-Fi amplifier is a state-of-the-art Class AB amplifier developed by Singxer after many years of research. It features ultra-high bandwidth, ultra-low noise, and ultra-low distortion. Its performance has reached a world-leading level, with completely separated and independent left and right channels for optimal channel separation. The amplifier’s circuitry, designed in-house, utilizes a high-performance, high-speed design that ensures low noise, low distortion, and exceptional sound quality.

Description

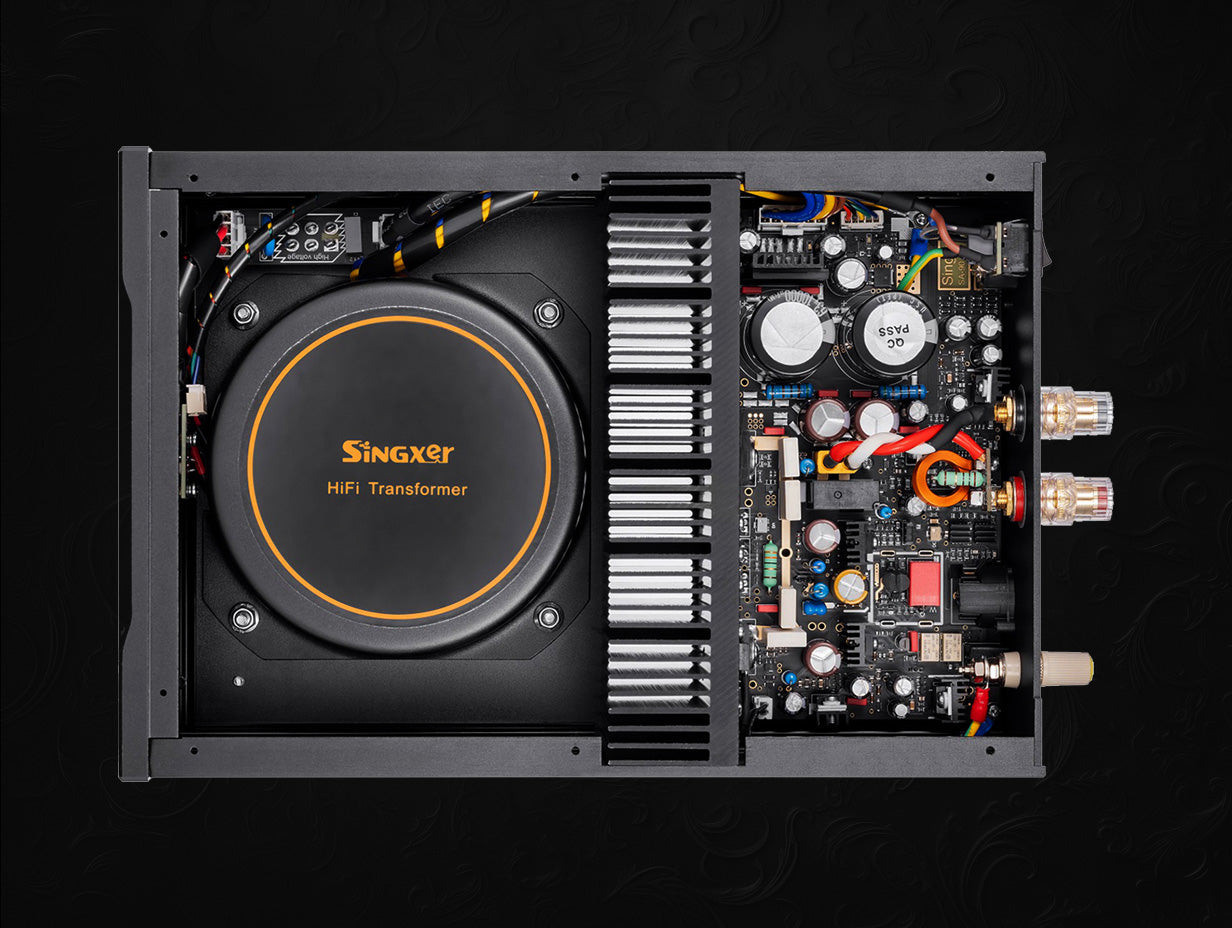

Power supply capacity of heavy material design: each channel is powered by a shielded toroidal transformer with a capacity of 300 watts of high power (maximum short-term power can reach 500 watts); 20000uF Dalian Wave Current imported ruby ​​electrolytic capacitors; 4 discrete ultra-low noise power supplies are designed for the small signal part of the circuit

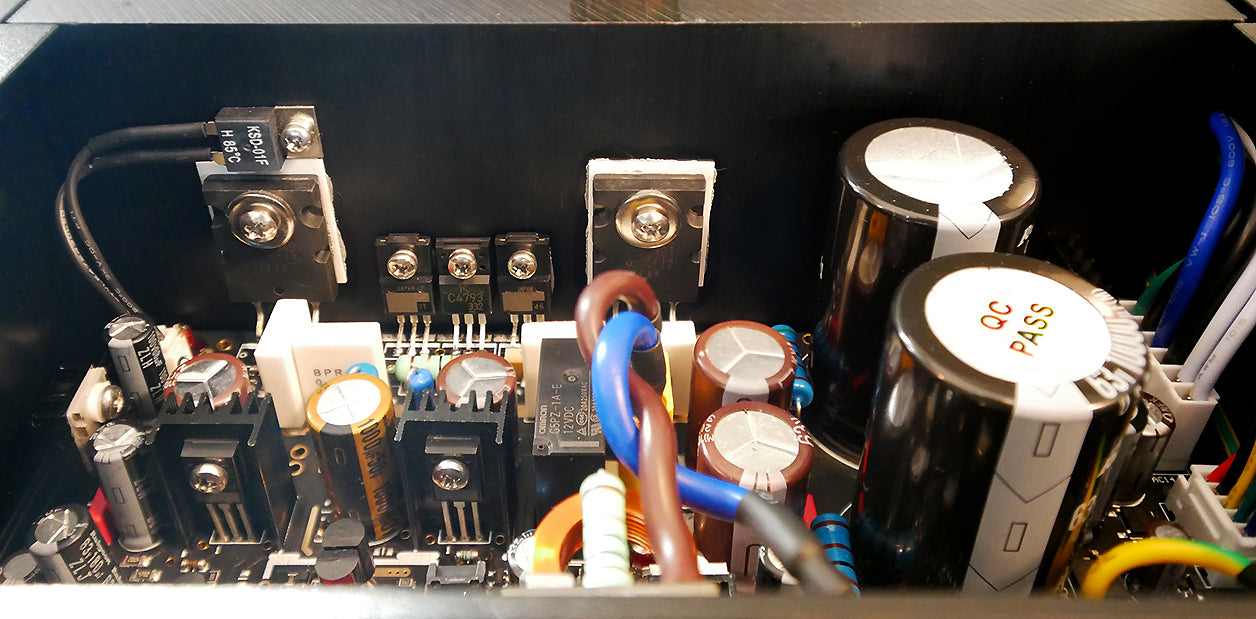

Manually fine-tuned differential stages, combined with high-quality components such as precision resistors and imported film capacitors; the circuit is simple in design, but transistors with particularly excellent linearity are used where the audio signal passes.

With the same level of performance, we use a low open-loop gain design to achieve low transient intermodulation distortion and obtain low transient intermodulation distortion; excellent listening experience;

High and low gain adjustment 16/23db; Support high and low gain adjustment Single-End balanced switching, double input switching, no mutual interference

Advanced speaker protection function: overheating switch, overload, DC protection

Specifications

Product type

Power amplifier

Amplification

A/B class

Channel

Mono (2x)

Inputs

1x Single-ended RCA
1x Balanced XLRGND terminal

Output

Speaker terminals

Max. output power

200W @ 4 ohm (THD+N=1%)
120W @ 8 ohm (THD+N=1%)

Rated output power

180W @ 4 ohm
90W @ 8 ohm

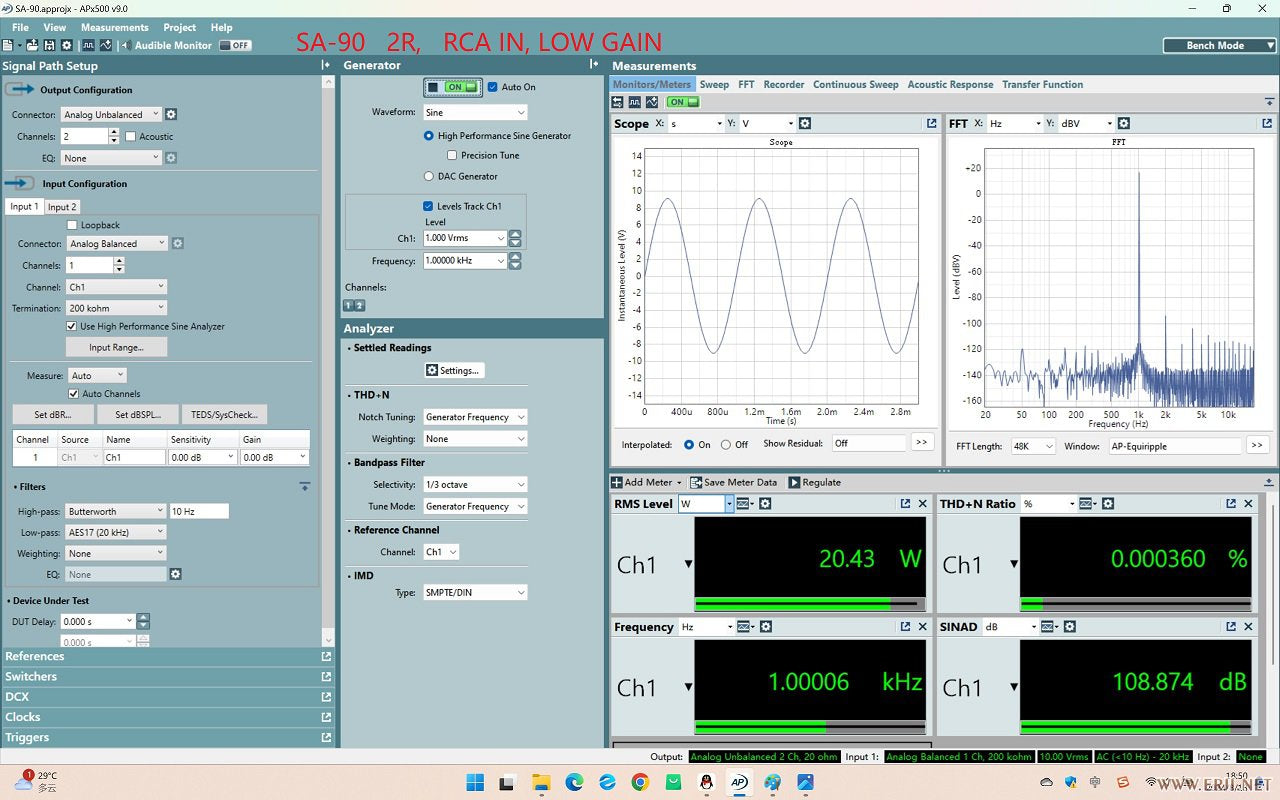

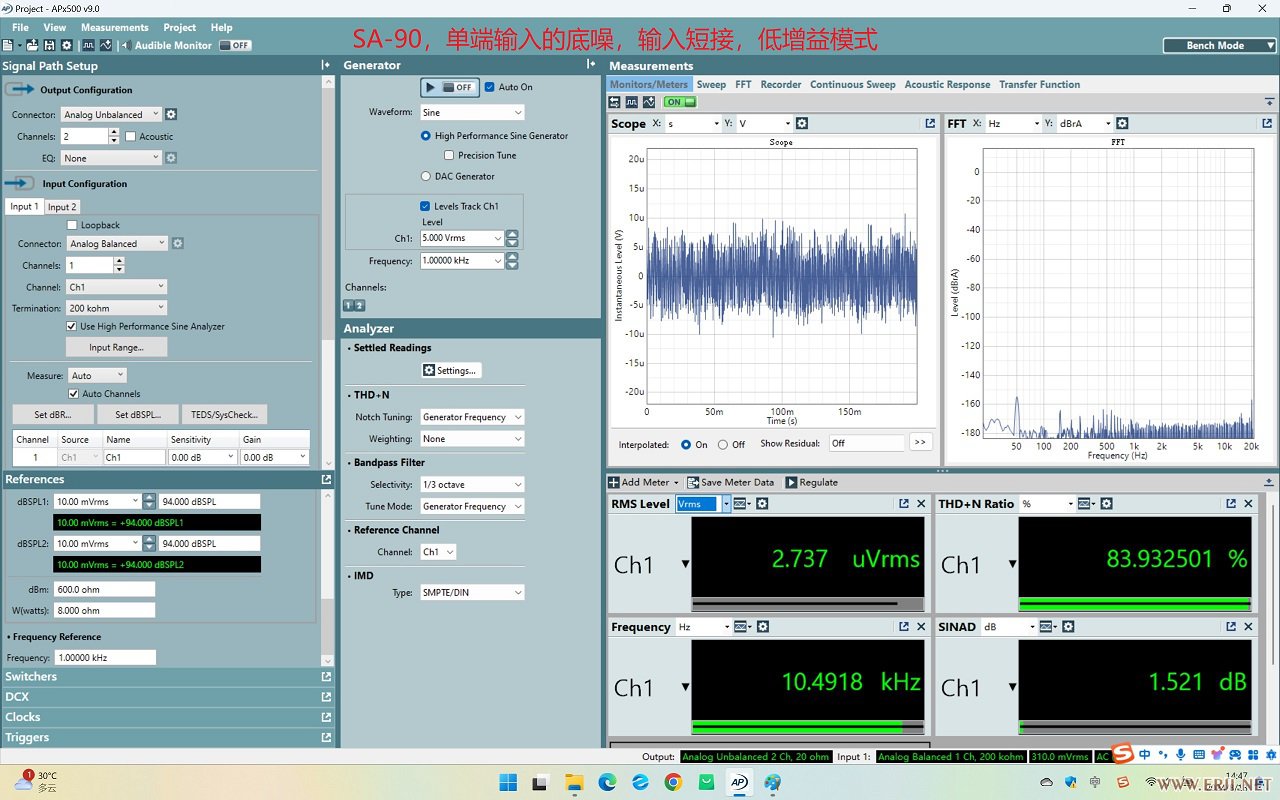

Noise level

< 2.3uv (A-weighted, RCA input, Low gain)

SNR

> 140dB (A-weighted, RCA input, Low gain)

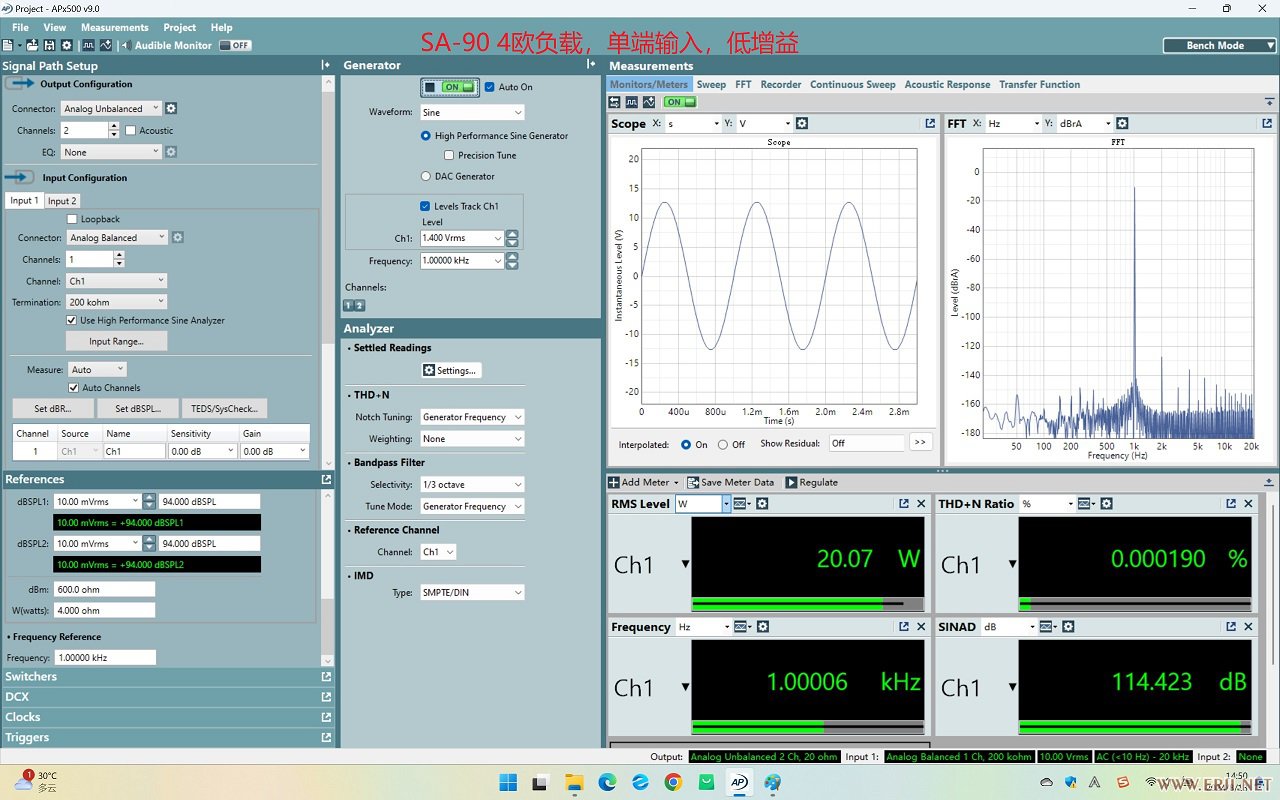

THD+N

-110dB (A-weighted, 20W, 8 ohm)

Gain adjustment

Low : 16dB
High : 23dB

Power supply

115-230V AC

Dimensions

216 x 320 x 80mm

Weight

7.5kg

Package

1x Mono power amplifier Singxer SA-90
1x Power supply cable
